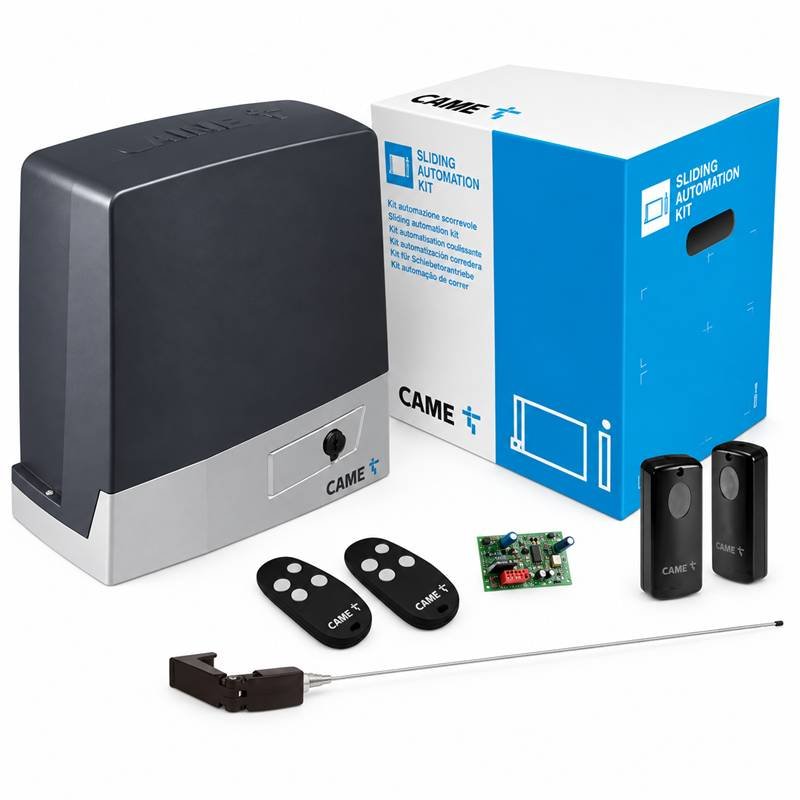

CAME BKV20AGS 2000 kg Sliding Gate Motor Oman, 36V Heavy Duty

Description

The CAME BKV20AGS is a 36 V sliding gate motor for heavy gates up to 2000 kg and up to 20 m long. It delivers 900 N of thrust at 12 metres a minute, uses adaptive speed and torque, and has four programmable safety inputs. It carries an IP54 rating and is listed for intensive use on industrial sites, warehouses and large compounds.

Two points come first. The listing does not say what is in the box, so we quote the rack, the photocells and the remotes line by line. And a gate near 2000 kg needs a steel rack and a track built for the load.

CAME BKV20AGS model code and ordering code

The supplier lists the model as BKV20AGS, with ordering code 801MS-0310. We read the code on the motor label when you collect it, so you know exactly which unit you have.

CAME BKV20AGS price in Oman and what we quote with it

Price: OMR 522.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

The listing does not state the box contents, so we do not call this a kit. Before you pay, we confirm what the price covers, and we list every extra your gate needs.

2000 kg sliding gate motor in Oman: which CAME motor for which gate

Choose the motor by the weight of the moving leaf, with a margin. A motor that runs near its limit all day wears out early.

If your gate weighs close to a limit, step up to the next motor. The gate must also roll freely by hand before any motor drives it.

36 V motor, 250 W and 900 N: what the figures mean

The motor runs at 36 V, fed from a 230 V, 50 or 60 Hz mains supply through the control board. It draws up to 250 W, and the listing gives a current of 9 A, which is likely the figure on the 36 V side. The thrust is 900 N, and the speed is 12 metres a minute, so a gate that opens 6 metres takes about 30 seconds.

Thrust is the pushing force that moves the gate, and it matters most as the gate starts to roll. Our electrician sizes the supply from the 230 V side, so we confirm the current with CAME before we quote the cable.

Intensive use: is the CAME BKV20AGS for your site

CAME lists the BKV20AGS for industrial sites, warehouses, logistics centres, commercial buildings and heavy residential compounds, and says intensive use without a rating. We ask CAME for the duty class before we recommend it for a gate that runs all day.

Adaptive speed and torque, obstacle detection and four safety inputs

CAME lists adaptive speed and torque technology, obstacle detection and four programmable safety inputs. The control board has a graphic display, so we set the speed, the force and the stop points from a menu, and you can read the settings later.

Four inputs let us protect the leading edge, the trailing edge and the posts of a heavy gate with safety edges and photocells. On a gate this heavy, those devices are not optional.

Steel rack and track for a 2000 kg sliding gate

The listing does not state the pinion module or the rack. Nylon rack is usually rated for much lighter gates than steel, so at this weight we quote steel rack, and we confirm the module with CAME first. The rack and the pinion must share a module, or they will not mesh.

A motor does not carry the gate. The frame, the track, the rollers and the foundation do. We check four things before we fit.

CAME remote controls for the BKV20AGS

The listing does not state the radio frequency, a receiver or the remote memory. A CAME receiver pairs only with CAME handsets. Somfy, BFT and Nice remotes cannot pair with it, because each brand uses its own coding. Tell us how many people use the gate and we plan the radio card and the handsets.

Power cuts and the BKV20AGS in Oman

The listing gives no battery backup details, so we do not promise that the gate opens in a power cut. We confirm with CAME whether a battery option exists for this motor. Keep the manual release where you can reach it.

IP54, sun and sand: the CAME BKV20AGS in Oman

IP54 protects against dust and splashing water. The page says the motor performs in extreme heat but gives no temperature range, so we ask CAME for it. We mount the motor in shade where we can, on a raised base clear of standing water and blown sand. Keep the track clean, because sand wears rollers and rack faster than any motor fault.

CAME BKV20AGS specification

CAME heavy sliding gate motor Muscat: supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service sliding gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the weight, the length and a photo of your gate through the contact page. Compare more in our sliding gate opener range, or visit the Doors Auto shop.

CAME BKV20AGS FAQ

What is the CAME BKV20AGS?

A 36 V sliding gate motor for heavy gates up to 2000 kg and 20 m long, with 900 N of thrust, adaptive speed and torque and four programmable safety inputs.

What is in the box with the CAME BKV20AGS?

The listing does not say. The rack, photocells and remotes may be extra, so we confirm what the price covers and quote each item for your gate.

Does the CAME BKV20AGS need a steel rack?

Yes, for a gate near its limit. We confirm the module with CAME and quote steel rack for heavy gates.

Will my Somfy or BFT remote work with the CAME BKV20AGS?

No. A CAME receiver pairs only with CAME handsets, because each brand uses its own coding. You need CAME remotes.

What is the CAME BKV20AGS price in Oman?

OMR 522.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

Do you fit a CAME heavy sliding gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
