CAME BK 1800 kg Sliding Gate Motor Oman, Heavy Duty Kit with 50% Duty

Description

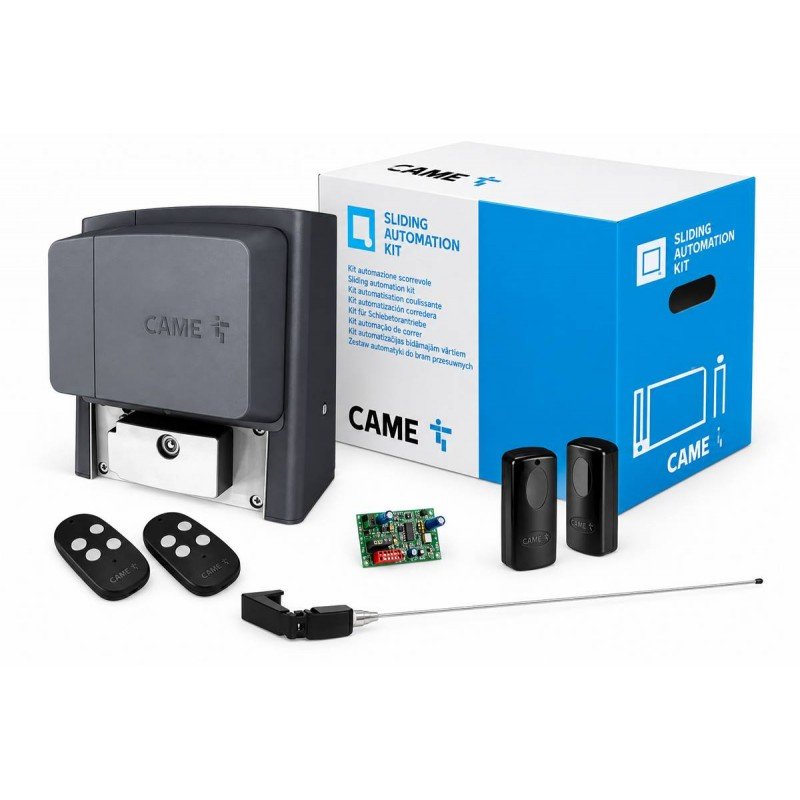

The CAME BK 1800 kg is a heavy duty sliding gate motor kit for large gates up to 1800 kg. It has a 230V motor, 1150 N of traction, a 50% duty rating and an IP54 rating. The control board has a display and stores 250 users. The kit comes with two remotes, a pair of Bluebus photocells, a receiver, a blinker light, a 4 metre nylon rack and a push button.

Two points come first. The gate length is listed as both 20 m and 9 m, so we confirm it before we quote a long gate. And a gate near this weight needs a steel rack, not the nylon rack in the kit.

CAME BK 1800 kg price in Oman and what is in the kit

Price: OMR 430.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

• CAME BK 1800 motor
• Integrated control unit with a display
• Two remote controls
• One pair of Bluebus photocells
• One remote receiver
• One blinker light
• One 4 metre nylon rack
• One push button

Not included: a steel rack, extra rack for a longer gate, a safety edge, a battery backup and the fixings for your base plate. We list what your gate needs in the quote.

1800 kg sliding gate motor in Oman: weight and length

CAME lists the motor for gates up to 1800 kg. The feature list gives a maximum length of 20 m, and the technical data gives a leaf width of 9 m, so we treat the shorter figure as the safe one until we confirm.

A heavy gate must roll freely before any motor drives it. Check the track, the rollers and the foundation, because a gate this weight puts a large load on all three.

Module 4 or 6 rack: nylon or steel for a heavy sliding gate

The kit includes a 4 metre nylon rack. The listing gives the pinion as module 4, and also says the motor is available with a module 4 or module 6 pinion. The rack and the pinion must share a module, or they will not mesh.

The rack must run along the full length of the gate leaf, so a longer gate needs more, joined in line. Nylon rack is usually rated for lighter gates than steel, so at 1800 kg we quote steel rack. We confirm the module and the rating before we supply any.

1150 N and 10.5 m per minute: what the figures mean

The motor delivers 1150 N of traction from up to 480 W and 4.2 A on a 230V supply. Traction is the pulling force that moves the gate, and it matters most when the gate starts to roll. The speed is 10.5 metres per minute, so a gate that opens 6 metres takes about 34 seconds.

50% duty and thermal protection on a heavy gate motor

The listing gives a 50% duty rating. The motor can run for about half the time, in cycles with rest between. That is higher than the 30% on the CAME BXL 400 kg, so it suits a busier gate. The motor also has thermal protection, rated at 150°C, which cuts power if it overheats.

CAME BK control board: display, 250 users and safety edges

The integrated board has terminal blocks and a display, and stores up to 250 users, which suits a block or a compound with many residents. Its safety devices are self diagnosing, so a failed photocell does not leave the gate unprotected. The safety inputs can also take 8k2 resistive safety edges, which we recommend on a gate that closes toward a wall or a footpath.

The photocell pair in the kit is Bluebus, CAME’s own bus system. It suits CAME boards. Photocells from another brand are not assumed to connect.

Self locking, magnetic limit switches and the manual release

The motor is self locking, so the gate holds its position when the motor stops. The unit is ready for magnetic limit switches, which are optional and have no mechanical contact to wear. A manual release is needed in a power cut, and the listing gives no battery details, so we do not promise that the gate opens when the power fails.

CAME remote controls: receiver and what pairs

A remote receiver is in the kit, with two remotes. The listing does not state the radio frequency. A CAME receiver pairs only with CAME handsets. Somfy, BFT and Nice remotes cannot pair with it, because each brand uses its own coding.

IP54 and 50°C: the CAME BK 1800 kg in Omani heat

IP54 protects against dust and splashing water. The motor runs from minus 20 to plus 50°C, which is lower than some other models, and a motor housing in direct summer sun can exceed the air temperature. We mount it in shade where we can, on a raised base clear of standing water and blown sand. Keep the track clean, because sand wears rollers and rack faster than any motor fault.

CAME BK 1800 kg specification

CAME heavy sliding gate motor Muscat: supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service sliding gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the weight and length of your gate through the contact page. Compare more in our sliding gate opener range, or visit the Doors Auto shop.

CAME BK 1800 kg FAQ

What is the CAME BK 1800 kg?

A heavy duty sliding gate motor kit for large gates up to 1800 kg, with a 230V motor, 1150 N of traction, a 50% duty rating and an IP54 rating.

How long a gate can the CAME BK 1800 kg move?

The listing says up to 20 m in one place and a leaf width of 9 m in another. We treat 9 m as the safe limit and confirm before we quote a long gate.

Does the CAME BK 1800 kg need a steel rack?

The kit includes a 4 metre nylon rack. A gate near 1800 kg needs a steel rack, so we confirm the module and quote the steel option.

Will my Somfy or BFT remote work with the CAME BK 1800 kg?

No. A CAME receiver pairs only with CAME handsets, because each brand uses its own coding. You need CAME remotes.

What is the CAME BK 1800 kg price in Oman?

OMR 430.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

Do you fit a CAME heavy sliding gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
