CAME BXV04AGS 400 kg Sliding Gate Motor Oman, 24V Kit with Two Remotes

Description

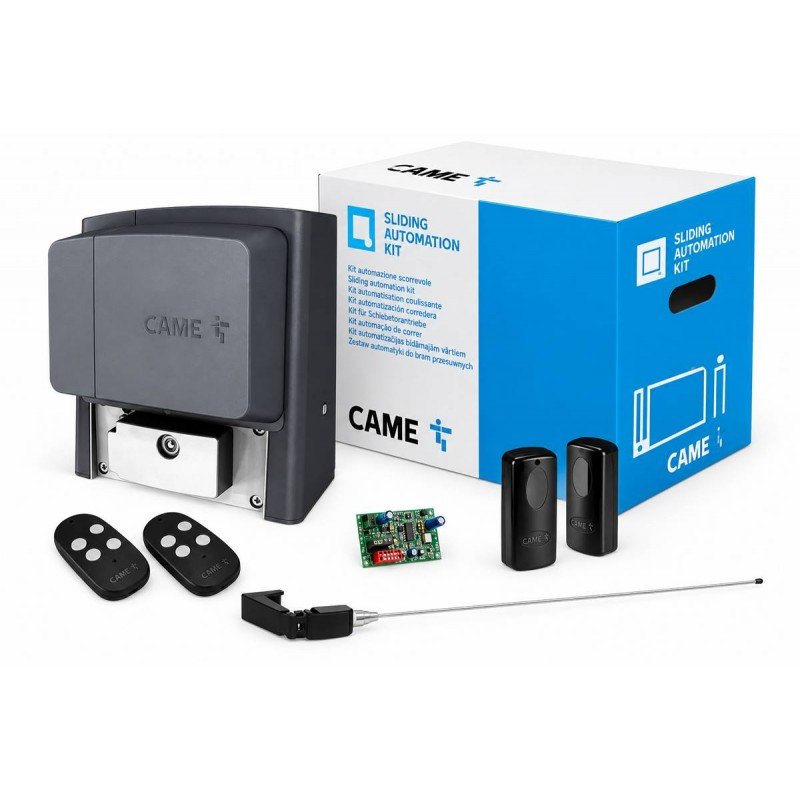

The CAME BXV04AGS is a 24 V sliding gate motor kit for residential and commercial gates up to 400 kg and 14 m long. It moves the gate at 12 metres a minute with 350 N of thrust, draws up to 170 W from a 230 V supply and carries an IP54 rating. The kit comes with two four channel remotes, a pair of DIR10 photocells, an LED flashing light, a radio card with an antenna, a push button and four nylon racks.

Two points come first. The motor’s thrust is modest, so the gate must roll freely by hand. And the listing does not give the length of the four racks, so we confirm the total run before we quote.

CAME BXV04AGS model code and CAME code

The supplier lists the model as BXV04AGS, with CAME code 801MS-0150. We read the code on the motor label when you collect it, so you know exactly which unit you have.

CAME BXV04AGS price in Oman and what is in the kit

Price: OMR 212.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

• CAME BXV04AGS motor in a grey RAL7024 housing
• Integrated control board with a programming display
• Two four channel rolling code remotes
• One AF43S radio card on 433.92 MHz
• One TOP-A433N antenna and a 5 m cable
• One pair of DIR10 outdoor photocells
• One LED flashing light
• One push button
• Four nylon racks

Not included: extra rack for a longer gate, a safety edge, a battery backup and the fixings for your base plate. We list what your gate needs in the quote.

400 kg sliding gate motor kit in Oman: three CAME choices compared

We list three CAME motors for gates up to 400 kg. The table shows only what each listing publishes.

The BXL costs less and is a good motor for a plain villa gate. Choose the BXV04AGS if you want a 24 V motor and a published radio card and remotes. Ask us to compare them for your gate.

24 V motor, 170 W and 350 N: what the figures mean

The motor runs at 24 V, fed from a 230 V, 50 or 60 Hz mains supply through the control board. It draws up to 170 W and pushes with 350 N of thrust. The speed is 12 metres a minute, so a gate that opens 4 metres takes about 20 seconds.

A 350 N thrust suits a light gate on good rollers. A gate near the 400 kg limit that sticks or has a worn track will struggle. We check the gate rolls freely before we fit.

Heavy duty service on the BXV04AGS

CAME lists heavy duty service, with no number for the duty. We ask CAME for the rating before we recommend it for a gate that runs all day.

Rack for a 400 kg gate: four nylon racks and the run you need

The kit includes four nylon racks. The listing does not give their length or the pinion module, so we confirm the total run and the module with CAME. The rack must run along the whole leaf, so a longer gate needs more, joined in line. The rack and the pinion must share a module, or they will not mesh.

At 400 kg a nylon rack is usually adequate, and we confirm its rating for your gate. A gate that is heavier than it looks, or sees heavy use, may deserve steel.

433.92 MHz radio, AF43S card and four channel remotes

The listing gives the radio as 433.92 MHz, with an AF43S radio card, a TOP-A433N antenna and two four channel rolling code remotes. The remote memory is not stated. A CAME TOP handset pairs with it. Somfy, BFT and Nice remotes cannot pair, because each brand uses its own coding.

Two remotes suit a small household. A busy site needs one per driver, so we quote extra handsets with the motor.

DIR10 photocells, LED flasher and safety

A pair of DIR10 outdoor photocells and an LED flashing light are in the kit, which is more than many listings give. The photocells stop the gate if something crosses the beam, and the flasher warns people that the gate is about to move. A safety edge is worth adding on a gate that closes toward a wall or a footpath.

What the listing does not publish, and what we confirm

Power cuts and the manual release

The listing gives no battery details, so we do not promise that the gate opens in a power cut. We confirm with CAME whether a battery option exists for this motor. Keep the manual release where you can reach it.

IP54, heat and sand: the CAME BXV04AGS in Oman

IP54 protects against dust and splashing water, and the housing is a weather resistant grey. The listing gives no temperature range, so we do not quote one. We mount the motor in shade where we can, on a raised base clear of standing water and blown sand. Keep the track clean, because sand wears rollers and rack faster than any motor fault.

CAME BXV04AGS specification

CAME sliding gate motor Muscat: supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service sliding gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the weight and length of your gate through the contact page. Compare more in our sliding gate opener range, or visit the Doors Auto shop.

CAME BXV04AGS FAQ

What is the CAME BXV04AGS?

A 24 V sliding gate motor kit for residential and commercial gates up to 400 kg and 14 m long, with 350 N of thrust and a speed of 12 metres a minute.

What is in the CAME BXV04AGS kit?

The motor, a control board with a display, two four channel remotes, an AF43S radio card with an antenna, a DIR10 photocell pair, an LED flashing light, a push button and four nylon racks.

Is the CAME BXV04AGS better than the BXL 400 kg?

It is a 24 V motor with a published radio card, remotes and flasher in the kit, and it costs more. The BXL costs less. We compare them for your gate before you buy.

Will my Somfy or BFT remote work with the CAME BXV04AGS?

No. It uses a CAME radio card on 433.92 MHz, so Somfy, BFT and Nice handsets cannot pair with it. You need CAME handsets.

What is the CAME BXV04AGS price in Oman?

OMR 212.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

Do you fit a CAME sliding gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
