CAME BXV08AGS 800 kg Sliding Gate Motor Oman, Heavy Duty 24V Kit

Description

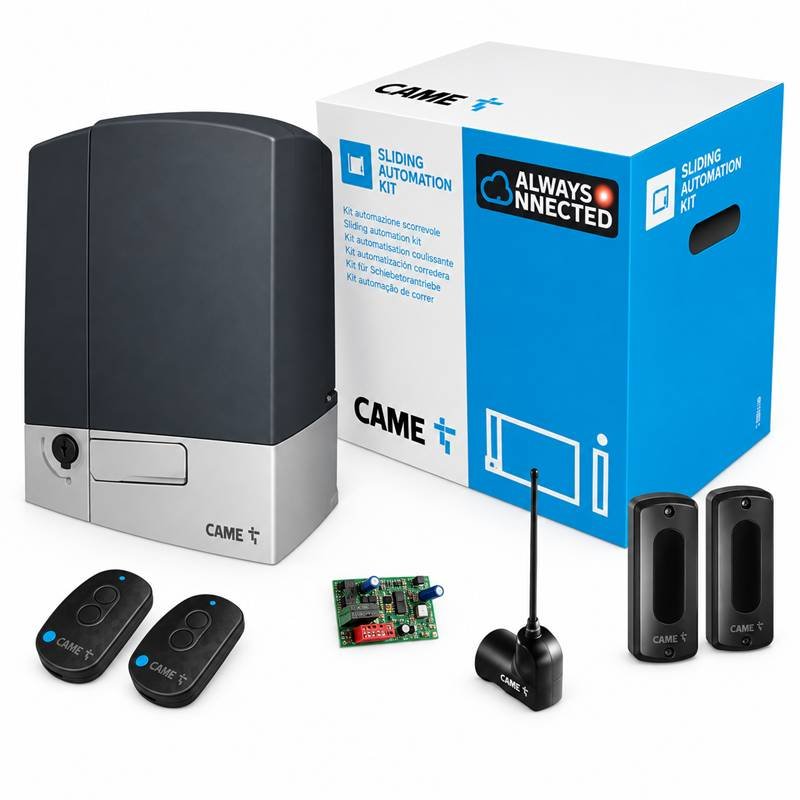

The CAME BXV08AGS is a heavy duty 24 V sliding gate motor kit for residential and commercial gates up to 800 kg and 20 m long. It pushes with 800 N, moves the gate at 11 metres a minute, draws up to 400 W from a 230 V supply and carries an IP54 rating. The kit comes with a four channel remote, a pair of DIR10 photocells, an LED flashing light, a radio card, a push button and four nylon racks.

Two points come first. A gate near 800 kg needs a steel rack, not the nylon racks in the kit. And the kit includes one remote, so we quote extras for a busy site.

CAME BXV08AGS model code and CAME code

The supplier lists the model as BXV08AGS, with CAME code 801MS-0210. We read the code on the motor label when you collect it, so you know exactly which unit you have.

CAME BXV08AGS price in Oman and what is in the kit

Price: OMR 292.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

• CAME BXV08AGS motor in a grey RAL7024 housing
• Integrated control board with a display
• One four channel rolling code remote
• One AF43S radio card on 433.92 MHz
• One 5 m antenna cable
• One pair of DIR10 outdoor photocells
• One LED flashing light
• One push button
• Four nylon racks

Not included: more remotes, a steel rack, extra rack for a longer gate, a safety edge and the fixings for your base plate. We list what your gate needs in the quote.

800 kg sliding gate motor in Oman: three CAME choices compared

We list three CAME motors for gates up to 800 kg. The table shows only what each listing publishes.

The BXV08AGS costs more and publishes the most about its motor, with a stated thrust, speed and length. The BX 800 kg is the lowest price. Ask us to compare them for your gate.

CAME BXV series: BXV04AGS, BXV06AGS and BXV08AGS

The BXV series share a 24 V motor, an AF43S radio card, IP54 and a grey housing. The differences are weight, length, power and thrust.

The BXV08AGS has more than twice the thrust of the BXV04AGS, for OMR 80 more, at a slightly lower speed. The BXV 1000 kg sits above it in the same series.

24 V motor, 400 W and 800 N: what the figures mean

The motor runs at 24 V, fed from a 230 V, 50 or 60 Hz mains supply through the control board. It draws up to 400 W and pushes with 800 N of thrust. The speed is 11 metres a minute, so a gate that opens 6 metres takes about 33 seconds.

The listing does not state the current or whether the motor is AC or DC, so we confirm both before the electrician sizes the supply.

Steel rack for an 800 kg sliding gate

The kit includes four nylon racks. The listing does not give the pinion module or the length of the racks, so we confirm both with CAME. The rack and the pinion must share a module, or they will not mesh. The rack must also run along the whole leaf, so a gate listed up to 20 m needs a large run, joined in line and fixed straight.

Nylon rack is usually rated for lighter gates than steel of the same module. At 800 kg we quote steel rack, and we confirm the rating of the nylon racks in the kit first.

Heavy duty service: is the BXV08AGS for your site

CAME lists heavy duty service, with no number for the duty. We ask CAME for the rating before we recommend it for a gate that runs all day.

DIR10 photocells and the LED flasher

A pair of DIR10 outdoor photocells and an LED flashing light are in the kit. The photocells stop the gate before it touches an obstacle, and the flasher warns people that it is about to move. On a gate this heavy, a safety edge is also worth adding where it closes toward a wall or a footpath.

433.92 MHz radio and the single remote in the kit

The listing gives the radio as 433.92 MHz, with an AF43S radio card and a four channel rolling code remote. The remote memory is not stated. A CAME TOP handset pairs with it. Somfy, BFT and Nice remotes cannot pair, because each brand uses its own coding. The kit has one remote, so we quote extra handsets with the motor. Tell us how many people use the gate.

What the listing does not publish, and what we confirm

Power cuts and the manual release

The listing gives no battery details, so we do not promise that the gate opens in a power cut. We confirm with CAME whether a battery option exists for this motor. Keep the manual release where you can reach it.

IP54, heat and sand: the CAME BXV08AGS in Oman

IP54 protects against dust and splashing water, and the housing is a weather resistant grey. The listing gives no temperature range, so we do not quote one. We mount the motor in shade where we can, on a raised base clear of standing water and blown sand. Keep the track clean, because sand wears rollers and rack faster than any motor fault.

CAME BXV08AGS specification

CAME sliding gate motor Muscat: supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service sliding gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the weight and length of your gate through the contact page. Compare more in our sliding gate opener range, or visit the Doors Auto shop.

CAME BXV08AGS FAQ

What is the CAME BXV08AGS?

A heavy duty 24 V sliding gate motor kit for residential and commercial gates up to 800 kg and 20 m long, with 800 N of thrust and a speed of 11 metres a minute.

What is in the CAME BXV08AGS kit?

The motor, a control board with a display, one four channel remote, an AF43S radio card with an antenna cable, a DIR10 photocell pair, an LED flashing light, a push button and four nylon racks.

Does the CAME BXV08AGS need a steel rack?

The kit includes four nylon racks. A gate near 800 kg needs a steel rack, so we confirm the module and quote steel rack for heavy gates.

Will my Somfy or BFT remote work with the CAME BXV08AGS?

No. It uses a CAME radio card on 433.92 MHz, so Somfy, BFT and Nice handsets cannot pair with it. You need CAME handsets.

What is the CAME BXV08AGS price in Oman?

OMR 292.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

Do you fit a CAME sliding gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
