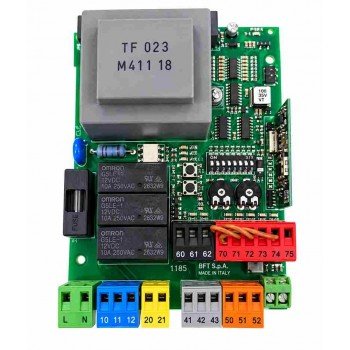

BFT SHYRA AC BA 230V Control Board Oman, Moovi Barrier

Description

The BFT SHYRA AC BA 230V is a control board for BFT MOOVI parking barriers, running one single phase motor on 220 to 230V, with a built in 433.92 MHz rolling code receiver that stores up to 63 remotes and a dedicated 8K2 safety edge input.

That last point matters more than it looks. Our other MOOVI board, the ALPHA BOM, does not confirm a safety edge input in its own published specification. This one does. If safety edge support is a requirement for your site, that confirmed detail is the deciding factor between the two boards, not price or appearance.

BFT SHYRA vs ALPHA BOM: two MOOVI boards, one important difference

If you are replacing a failed board and do not know which your barrier originally used, send us a photo of the existing unit rather than order by name. A board swap that drops a confirmed safety edge input for an unconfirmed one is a step backward on a barrier crossing a vehicle lane.

BFT Moovi barrier board Oman: why 63 stored remotes matters on a shared site

A built in receiver storing up to 63 transmitters covers most compound, staff car park or gated community entrances without an external receiver module. Each household, vehicle or staff member gets their own handset, and adding or removing one is a board side operation rather than a separate accessory purchase.

Rolling code at 433.92 MHz matches BFT’s Mitto range already stocked on this site, so handsets such as the BFT Mitto B RCB pair directly with this board without an adaptor.

BFT barrier safety edge input, why it is not optional on a vehicle barrier

A boom barrier crosses a lane used by cars, and an 8K2 resistive safety edge is what stops the boom if it contacts a vehicle, a person, or an obstruction during its travel. This differs from obstacle detection built into the motor itself, since a resistive edge senses actual contact along the boom’s length, not just resistance at the drive.

We wire and test the safety edge under load as a mandatory step on every SHYRA AC BA installation, with the boom actually moving and the edge triggered by hand, rather than trust the wiring diagram alone.

BFT SHYRA AC BA 230V specification

Why a Moovi barrier fails before the boom motor does

Barrier gearboxes are mechanically simple and generally outlast the board. A barrier that hums without lifting, will not store new remotes, or has stopped responding to its safety edge is very often this board, not a worn motor or a failing boom joint. Send us a photo of the existing board and its printed code, and tell us the exact symptom, and we will confirm which part actually needs replacing.

A board swap is also the point to check the rest of the barrier. If the boom itself is drifting off level or making noise at the pivot, that points to the rotating plate and arm holder rather than the electronics, and replacing one without checking the other leaves half the job done.

Fitting a barrier control board in Oman

This is a bare mains board on a barrier crossing vehicle and pedestrian space, so wiring the safety edge correctly matters more here than on most gate hardware on this site. Coastal sites in Sohar, Sur and Salalah need the enclosure seal and cable glands checked against salt air reaching the board over time, and inland at Nizwa and Duqm, dust ingress through a poorly sealed gland is the more common cause of an intermittent fault that comes and goes with the weather.

What is included, and what is not

• BFT SHYRA AC BA 230V control board

Not included: enclosure, photocells, safety edge sensor strip itself, remotes and mains cabling. Remotes come from BFT remotes, and other barrier accessories from the full gate barriers range, including the RME 1 BT loop detector if vehicle sensing is also needed.

BFT barrier control board supply and fitting across Oman

We stock SHYRA AC BA alongside ALPHA BOM, so we fit whichever board matches your actual barrier rather than whichever is cheaper on the shelf. We cover all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send a photo of your existing board and barrier model through the contact page.

BFT SHYRA AC BA FAQ

Does the SHYRA AC BA have a confirmed safety edge input?

Yes, a dedicated 8K2 input, which is stated by the manufacturer. We still test it under load with the boom moving before handing the barrier back.

How many remotes can this board store?

Up to 63, through the built in 433.92 MHz rolling code receiver, enough for most shared compound or staff entrances without an external receiver.

Which barriers use the SHYRA AC BA?

BFT MOOVI parking barriers. If you are replacing a board on an existing barrier, send us a photo of the old one rather than order by name alone.

What is the BFT SHYRA AC BA price in Oman?

OMR 92.000. In stock, with fitting and safety edge testing quoted separately.

Do you fit BFT barrier control boards across Oman?

Yes, in all eleven governorates, with our engineers based in Al Khuwair, Muscat.
