BFT Steel Rack Oman, Module 4 for Sliding Gate Motors

Description

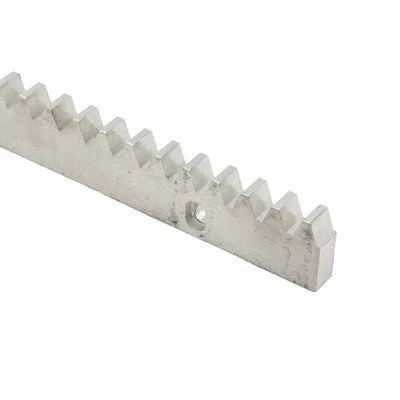

The BFT steel rack, model CVZ D571053, is a module 4 gear rack sold in 1 metre lengths, screw fixed to supports along a sliding gate. It fits the pinion on BFT DEIMOS, ARES, ICARO and KUSTOS sliding gate motors, all module 4.

Rack is measured against the wrong figure more than any other part on a sliding gate. It has to cover the full leaf length, not the opening width. A 6 metre leaf needs 6 metres of rack, six pieces, even if the gap it closes is only 4 metres.

BFT sliding gate rack price Oman: how many metres your gate needs

Measure the leaf itself, end to end, not the space between the posts. Order that length in whole metre pieces, since this rack is sold and fixed in 1 metre sections.

Buying to the opening width instead of the leaf length is the single most common shortfall we see on a sliding gate order, and it means a second delivery before installation can finish.

Steel or nylon gate rack, which one suits your gate

BFT sells this same module 4 profile in steel and in a lighter nylon version.

Steel suits our BFT ICARO, ARES and industrial DEIMOS installations, where load and duty cycle matter more than quiet running. A lighter villa gate on DEIMOS BT A400 or A600 often does just as well on nylon for less cost.

BFT steel rack specification

Fixing steel rack correctly on a sliding gate in Oman

The rack sits on adjustable supports welded or bolted to the gate frame, set to the correct height and gap from the pinion. Get that gap wrong and the rack either binds against the pinion or rides loose, both of which wear the gearbox faster than normal use.

On coastal sites in Sohar, Sur and Salalah, an unprotected steel rack picks up surface corrosion faster than inland, so check the finish and touch up any exposed cut ends during fitting. Inland at Nizwa and Duqm, blown sand packed into the rack teeth is the more common issue, and brushing the track periodically keeps the pinion from working against grit.

What is included, and what is not

• One 1 metre length of module 4 steel rack

Not included: fixing supports if your gate has none, and the sliding motor itself. See the full BFT sliding gate motor range and accessories for supports and photocells.

BFT rack supply and fitting across Oman

We stock rack alongside every sliding motor we sell, so it arrives with the gate rather than as an afterthought. We cover all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send your leaf length through the contact page and we will confirm how many metres you need.

BFT steel rack FAQ

How much rack do I need for my sliding gate?

Measure the full leaf length, not the opening width, and order that many 1 metre pieces. A 6 metre leaf needs 6 metres of rack.

Should I choose steel or nylon rack?

Steel suits heavy, industrial or high cycle gates. Nylon runs quieter and does not corrode, so it suits lighter villa gates. Both are module 4 and fit the same pinions.

Which BFT motors does this rack fit?

Any module 4 pinion, including DEIMOS, ARES, ICARO and KUSTOS sliding gate motors.

What is the BFT steel rack price in Oman?

OMR 10.000 per 1 metre piece. In stock, with fitting quoted separately.

Do you fit sliding gate rack across Oman?

Yes, in all eleven governorates, with our engineers based in Al Khuwair, Muscat.
