CAME RE432M Receiver Oman, Two Channel 433.92 MHz External Gate Receiver

Description

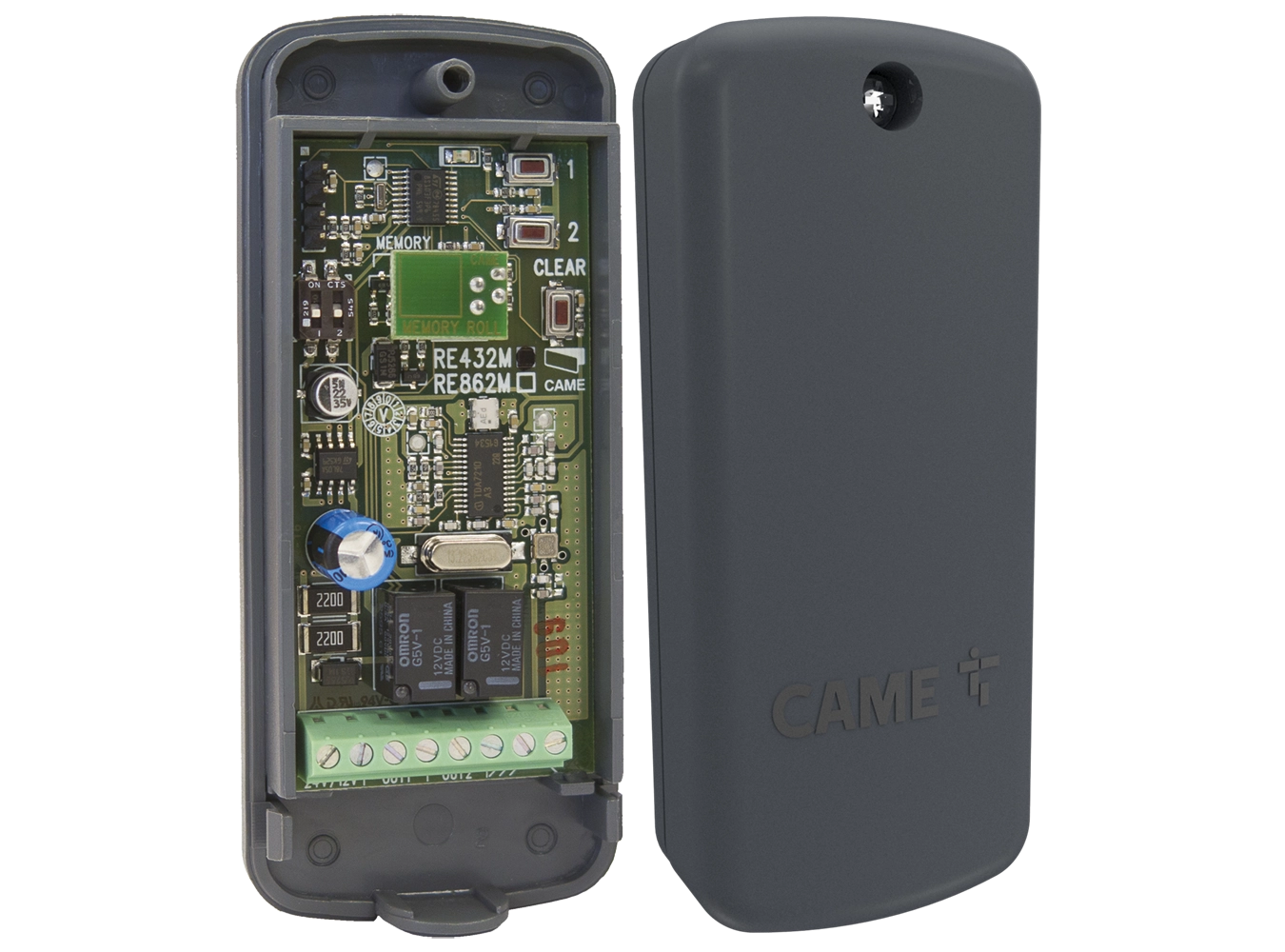

The CAME RE432M (code CAME 001RE432M) is an external gate receiver: a two channel receiver at 433.92 MHz in its own IP54 surface mount box. It stores up to 250 users, runs on 12 to 24V AC/DC, and this CAME receiver lets CAME remotes and keypads open a gate, garage door or barrier, even when the control board has no radio of its own.

Unlike a plug in card, this CAME receiver works outside the control board and switches its outputs like a push button. That makes it the usual answer for adding CAME remotes to almost any automation.

What is an external gate receiver, and when do you need one?

Most CAME control boards take a plug in radio card. An external gate receiver does the same job from its own box, mounted on the wall or the pillar, and connected to the board like a push button. You need one in these cases:

CAME RE432M price in Oman and what you get

Price: OMR 60.000 for the CAME 001RE432M, in stock at our shop in Al Khuwair, Muscat.

CAME 001RE432M: which remotes and keypads work with it

CAME lists the CAME 001RE432M for its TOP, TAM, ATOMO D, TWIN and TTS series, and names these devices:

So unlike the plug in AF43S card, which handles fixed code remotes, this CAME receiver also works with CAME rolling code remotes such as the TOP-44RBN. Remotes from other brands will not pair with it. See our CAME remote controls.

Two channel receiver: what the second channel does

A two channel receiver has two separate outputs, each linked to remote buttons you choose. The first channel usually opens and closes the main gate. The second can control something else:

• A pedestrian or partial opening of the same gate
• A second gate or a garage door on the same site
• Courtyard or driveway lights
• A barrier next to the gate

With one CAME 001RE432M and a four button remote, a family can open the main gate on one button and the garage door on another.

CAME RE432M or the AF43S card: which CAME receiver to choose

If you have a CAME board with a free card slot and fixed code remotes, the AF43S costs less. For anything else, the CAME RE432M is the safer choice.

How we fit the CAME 001RE432M external gate receiver

• We mount the receiver where the signal is clear, away from the metal of the cabinet and the gate.
• We power it from the 12 to 24V AC/DC supply of the control board.
• We connect the first channel to the open input of the board, and the second channel to the function you choose.
• Where range matters, we add the CAME TOP-A433N antenna on an RG58 cable, mounted high.
• We store each remote and keypad, test both channels, and check the range from the road.

We also keep a list of the remotes stored, so a lost remote can be deleted without wiping everyone else.

Heat, dust and range: the CAME RE432M in Oman

The receiver is rated IP54 and works from minus 20 to plus 55°C. A few habits keep it working well in the Oman climate.

CAME RE432M specification

Supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They supply, fit and programme CAME receivers and remotes across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send a photo of your control board and your remote, and we confirm the right receiver before you pay. See also the full range of CAME accessories.

CAME RE432M FAQ

What is the CAME RE432M?

An external gate receiver, code CAME 001RE432M: a two channel receiver at 433.92 MHz in an IP54 box, for up to 250 users, running on 12 to 24V AC/DC.

Is the CAME RE432M a control board?

No. It is a CAME receiver. It connects to a control board and tells it when a remote button is pressed.

Does this CAME receiver work with rolling code remotes?

Yes. CAME lists it with rolling code remotes such as the 806TS-0270 TOP-44RBN, as well as fixed code TOP, TAM and TWIN remotes.

What can the second output of a two channel receiver do?

It can open a pedestrian gap, a second gate, a garage door or a light, on a different remote button.

Can an external gate receiver work with another brand of motor?

Usually yes. It connects to the board like a push button. Send us a photo of the board and we check.

What is the CAME RE432M price in Oman?

OMR 60.000, in stock at our Muscat shop. Fitting and programming are quoted with your job.
