CAME SELD1FDG Key Selector Switch Oman, Surface Mount DIN Key, Backlit

Description

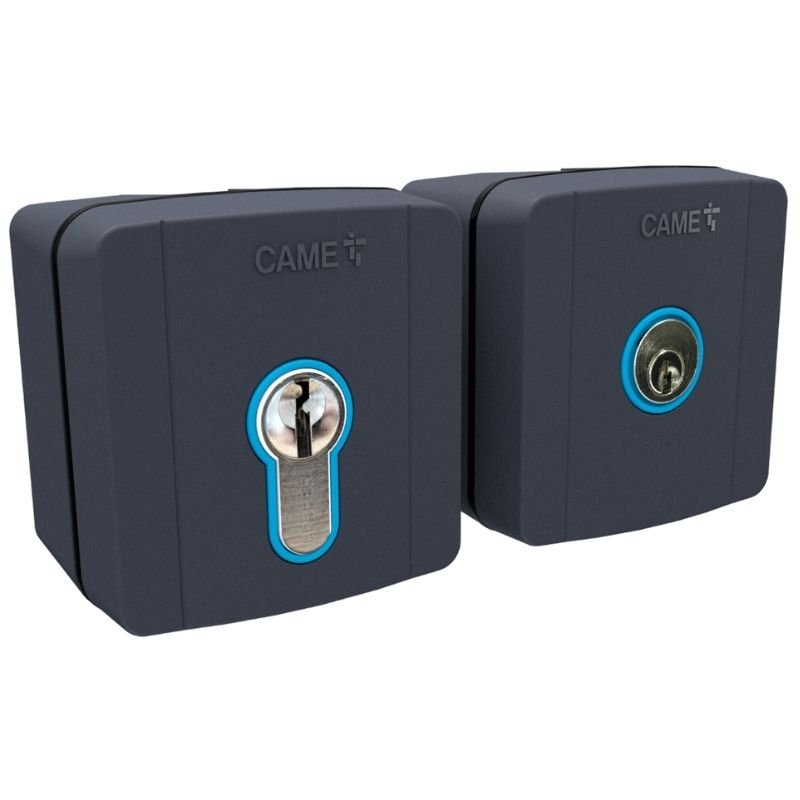

The CAME SELD1FDG (code CAME 806SL-0050) is a surface mounted key selector switch from the CAME SEL range: a gate key switch with a DIN cylinder that opens your gate, garage door or barrier with a turn of the key. This DIN key selector is backlit in blue, rated IP44, and switches 3 A at 24V.

A key selector switch gives a second, secure way to open the gate without a remote, for family members, staff, deliveries or the guard.

Why fit a gate key switch next to your remotes?

Remotes get lost, run flat or go with the car. A gate key switch on the pillar means anyone you trust with a key can always open the gate, and nobody without one can.

A key selector switch is also a good backup for older family members and for children old enough to come home alone: a key on the house key ring is harder to lose than a remote, and it never needs a battery. For villas let to tenants, changing who holds the keys is simpler than reprogramming a whole set of remotes.

CAME SELD1FDG price in Oman and what is in the box

Price: OMR 25.000 for the CAME 806SL-0050, in stock at our shop in Al Khuwair, Muscat.

CAME 806SL-0050 technical data

The blue backlight on the CAME 806SL-0050 makes the keyhole easy to find at night, which matters on a dark street or a compound entrance.

DIN key selector: surface or recessed

CAME makes the SEL key selector in two versions. They work the same way. The difference is how they fit on the pillar.

For most existing gates in Oman, the surface mounted DIN key selector is the simpler choice: no cutting into the pillar, and a neat finish.

How the key selector switch connects to the board

The key selector switch works like a push button with a lock. Turning the key closes a contact, and the control board reads that as a command. On CAME boards, the contacts are usually wired to the open command, and a second position can be wired to stop or to a partial opening, depending on the board. If you want the key to open only the pedestrian gap, not the full gate, we wire it to the partial opening input where the board has one.

Because it is a simple contact rated 3 A at 24V, a gate key switch like this also works with many boards from other brands. Send us a photo of your board and we check the inputs. See our CAME sliding gate motors, CAME swing gate motors and gate barriers.

How we fit the CAME SELD1FDG gate key switch

• We choose a spot on the pillar on the street side, at a comfortable height and within reach from a car window where that helps.
• We fix the selector to the pillar face with the hardware supplied.
• We run the cable to the control board in conduit, out of the sun.
• We wire the contacts to the open input, and the second position to the function you want.
• We test both positions, then hand over the two keys and note who holds them.

If the key selector switch is the only way into the property without a remote, we place it where the backlight is visible from the road.

Dust, sand and salt: keeping a DIN key selector working

A key cylinder outdoors in Oman collects fine sand, and coastal salt can make it stiff. The CAME SELD1FDG is rated IP44 against dust and splashing water, and a few habits keep it turning smoothly.

For the release lock on the motor itself, CAME also makes a DIN key cylinder, the CAME R001.

CAME SELD1FDG key selector switch specification

Supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They supply, fit and service gate access controls across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send a photo of your pillar and your control board, and we confirm the fit before you pay. See also the full range of CAME accessories.

CAME SELD1FDG FAQ

What is the CAME SELD1FDG?

A surface mounted key selector switch with a DIN cylinder, code CAME 806SL-0050, backlit in blue and rated IP44, for opening a gate with a key.

Why fit a gate key switch if I have remotes?

A gate key switch opens the gate when a remote is lost or flat, and lets you give a key to staff or family instead of another remote.

Is the CAME 806SL-0050 surface or recessed?

Surface mounted. The recessed version of the CAME SEL key selector is the 806SL-0060.

Does the DIN key selector work with other brands of board?

Often yes. It is a simple contact rated 3 A at 24V. Send us a photo of the board and we check the inputs.

What is the CAME SELD1FDG price in Oman?

OMR 25.000, with two keys, in stock at our Muscat shop. Fitting is quoted with your gate job.
