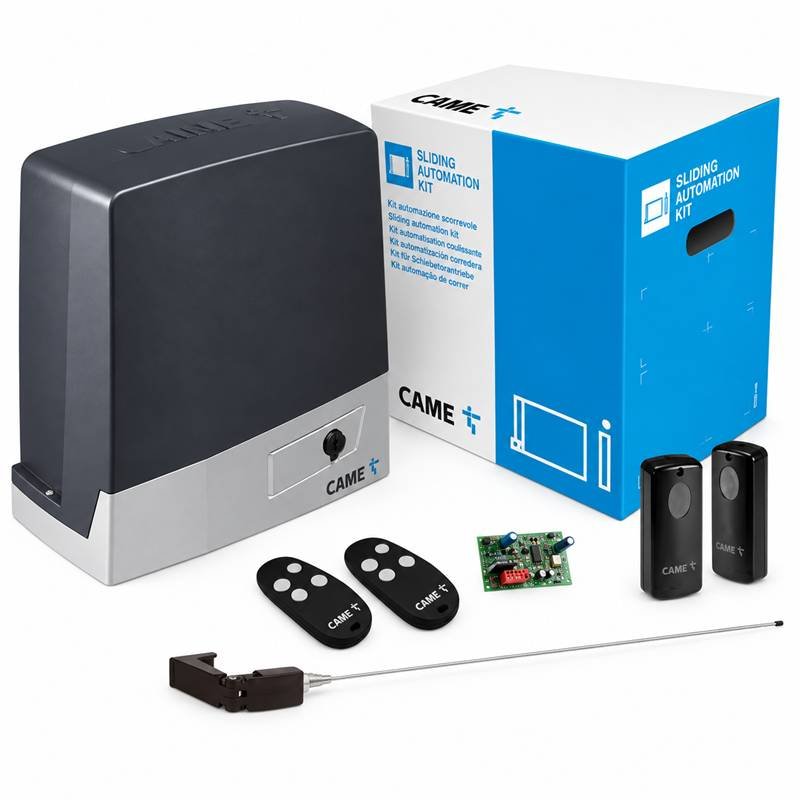

CAME BKV 2500 kg Sliding Gate Motor Oman, 36V Continuous Duty

Description

The CAME BKV 2500 kg is an industrial sliding gate motor for gates up to 2,500 kg and up to 20 m long. It runs a 36 V motor from a 230 V mains supply, delivers 1,000 N of thrust at 12 metres a minute and is listed for continuous duty with an IP54 rating. A graphical display sets it up, and four safety inputs take resistive safety edges.

Two points come first. The listing does not state what is in the box, so we quote the rack, the photocells and the remotes line by line. And a gate this heavy needs steel rack and a track built for the load.

CAME BKV 2500 kg price in Oman and what we quote with it

Price: OMR 705.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

The supplier’s listing carries two codes, 801MS-0320 and BKV25AGS, and does not list the box contents. We do not call this a kit. Before you pay, we confirm what the price covers, and we list every extra your gate needs.

2500 kg sliding gate motor in Oman: which CAME motor for which gate

Choose the motor by the weight of the moving leaf, with a margin. A motor that runs near its limit all day wears out early.

36 V motor on a 230 V supply: how the BKV differs

The BKV runs a 36 V motor, fed from a 230 V, 50 or 60 Hz mains supply through the control board. The listing gives 300 W and 12 metres a minute, so a gate that opens 6 metres takes about 30 seconds. The thrust is 1,000 N.

The page also gives a current of 10 A, which is probably the figure on the 36 V side, since 300 W from 230 V would draw far less. We confirm this with CAME, so our electrician sizes the supply correctly.

Continuous duty sliding gate motor: is the BKV for your site

CAME lists the BKV for continuous duty, so it can run for long periods without a rest. That is the main reason to choose it over the BK range, which publishes a lower duty rating. We confirm the duty class with CAME before we recommend it for a gate that runs all day.

Adaptive speed and torque, graphical display and four safety inputs

CAME lists adaptive speed and torque technology, a graphical display for the settings and four configurable safety inputs for resistive safety edges. The display is easier to read than a basic seven segment screen. Four edge inputs let us protect the leading edge, the trailing edge and the posts of a heavy gate.

We set the speed and the force during installation and test the response to an obstacle before we leave. On a gate this heavy, safety edges are not optional.

Steel rack and track for a 2500 kg sliding gate

The listing does not state the pinion module or the rack. Nylon rack is usually rated for much lighter gates than steel, so at this weight we quote steel rack, and we confirm the module with CAME first. The rack and the pinion must share a module, or they will not mesh.

A motor does not carry the gate. The track, the rollers and the foundation do. We check four things before we fit.

CAME remote controls and receiver for the BKV

The listing does not state the radio frequency, a receiver or the remote memory. A CAME receiver pairs only with CAME handsets. Somfy, BFT and Nice remotes cannot pair with it, because each brand uses its own coding. Tell us how many people use the gate and we plan the receiver and the handsets.

Power cuts and the BKV in Oman

The listing gives no battery backup details, so we do not promise that the gate opens in a power cut. We confirm with CAME whether a battery option exists for this motor. Keep the manual release where you can reach it.

IP54, sun and sand: the CAME BKV 2500 kg in Oman

IP54 protects against dust and splashing water. The listing gives no temperature range, so we ask CAME for it. We mount the motor in shade where we can, on a raised base clear of standing water and blown sand. Keep the track clean, because sand wears rollers and rack faster than any motor fault.

CAME BKV 2500 kg specification

CAME industrial sliding gate motor Muscat: supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service sliding gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the weight, the length and a photo of your gate through the contact page. Compare more in our sliding gate opener range, or visit the Doors Auto shop.

CAME BKV 2500 kg FAQ

What is the CAME BKV 2500 kg?

An industrial sliding gate motor for gates up to 2,500 kg and 20 m long, with a 36 V motor, 1,000 N of thrust and a listed continuous duty rating.

What is in the box with the CAME BKV 2500 kg?

The listing does not say. The rack, photocells and remotes may be extra, so we confirm what the price covers and quote each item for your gate.

Is the CAME BKV 2500 kg better than the BK 2200 kg?

It takes a heavier gate and is listed for continuous duty, so it suits a gate that runs all day. For a villa or a quiet compound, the BK range is enough and costs less.

Will my Somfy or BFT remote work with the CAME BKV 2500 kg?

No. A CAME receiver pairs only with CAME handsets, because each brand uses its own coding. You need CAME remotes.

What is the CAME BKV 2500 kg price in Oman?

OMR 705.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

Do you fit a CAME industrial sliding gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
