CAME BKV15AGS 1500 kg Sliding Gate Motor Oman, 36V Continuous Service Kit

Description

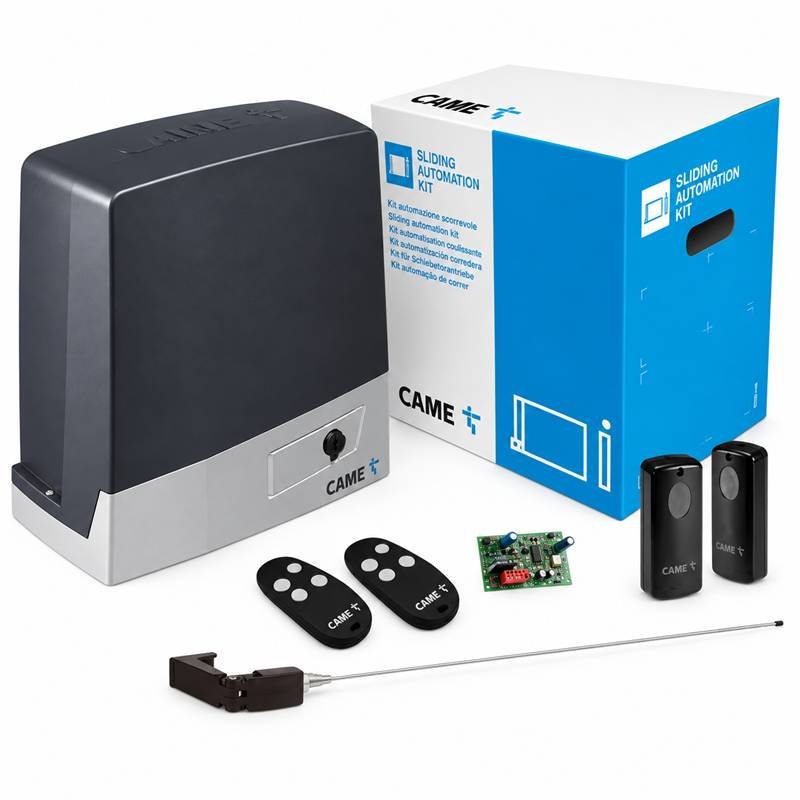

The CAME BKV15AGS is a 36 V sliding gate motor kit for heavy residential, commercial and industrial gates up to 1500 kg and 20 m long. It has adaptive speed and torque, a control board with a graphic display, an IP54 rating and CAME’s continuous service operation. The kit comes with a TOP-432EE remote on 433.92 MHz, a pair of DIR20 outdoor photocells, an antenna, a push button and four nylon racks.

Two points come first. The kit includes one remote and no blinker light, so we quote extras for a busy site. And a gate near 1500 kg needs a steel rack, not the nylon racks in the kit.

CAME BKV15AGS model code and part number

The supplier lists the model as BKV15AGS, with CAME code 801MS-0300. We read the code on the motor label when you collect it, so you know exactly which unit you have.

CAME BKV15AGS price in Oman and what is in the kit

Price: OMR 528.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

• CAME BKV15AGS motor
• Integrated control board with a graphic display
• One TOP-432EE two channel remote control
• One AF43S radio card on 433.92 MHz
• One TOP-A433N antenna and a 5 m cable
• One pair of DIR20 outdoor photocells
• One push button
• Four nylon racks

Not included: a blinker light, more remotes, a steel rack, safety edges and the fixings for your base plate. We list what your gate needs in the quote.

1500 kg sliding gate motor in Oman: which CAME motor for which gate

Choose the motor by the weight of the moving leaf, with a margin. A motor that runs near its limit all day wears out early.

If your gate weighs close to a limit, step up to the next motor. The gate must also roll freely by hand before any motor drives it.

36 V motor and continuous service on the CAME BKV15AGS

The listing describes a 36 V motor system, fed from your mains through the control board, and a continuous service operation type. It gives no number for the duty, the power or the speed, so we do not quote a figure. We ask CAME for them and put them in the quote.

Adaptive speed and torque and the graphic display

CAME lists adaptive speed and torque technology, which adjusts the motor to the load on the gate. The control board has a graphic display, so we set the speed, the force and the stop points from a menu, and you can read the settings later. Our engineers test the response to an obstacle before they leave.

Nylon or steel rack for a 1500 kg sliding gate

The kit includes four nylon racks. The listing does not give their length or the pinion module, so we confirm the total run and the module with CAME. The rack and the pinion must share a module, or they will not mesh. The rack must also run along the whole leaf, so a longer gate needs more.

Nylon rack is usually rated for lighter gates than steel. At 1500 kg we quote steel rack, and we confirm the rating of the nylon racks in the kit with the supplier first.

CAME TOP remote, 433.92 MHz radio card and antenna

The listing gives the radio as 433.92 MHz, with an AF43S radio card, a TOP-A433N antenna and a TOP-432EE two channel remote. The remote memory is not stated. A CAME TOP handset pairs with it. Somfy, BFT and Nice remotes cannot pair, because each brand uses its own coding.

The kit includes only one remote. A household or a site needs one for each driver, so we quote extra handsets with the motor. Tell us how many people use the gate.

DIR20 photocells and the missing blinker light

A pair of DIR20 outdoor photocells is in the kit, and they suit CAME boards. The kit has no blinker light, so we quote one, because a gate that moves with no warning lamp is a risk on a shared drive. A safety edge is also worth adding on a heavy gate that closes toward a wall or a footpath.

Power cuts and the manual release

The listing gives no battery details, so we do not promise that the gate opens in a power cut. We confirm with CAME whether a battery option exists for this motor. Keep the manual release where you can reach it.

What the listing does not publish, and what we confirm

We do not copy figures from the other CAME motors, because each one differs.

IP54, heat and sand: the CAME BKV15AGS in Oman

IP54 protects against dust and splashing water. The page says the motor performs in extreme heat but gives no temperature range, so we do not quote one. We mount it in shade where we can, on a raised base clear of standing water and blown sand. Keep the track clean, because sand wears rollers and rack faster than any motor fault.

CAME BKV15AGS specification

CAME heavy sliding gate motor Muscat: supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service sliding gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the weight and length of your gate through the contact page. Compare more in our sliding gate opener range, or visit the Doors Auto shop.

CAME BKV15AGS FAQ

What is the CAME BKV15AGS?

A 36 V sliding gate motor kit for heavy gates up to 1500 kg and 20 m long, with adaptive speed and torque, a graphic display and continuous service.

What is in the CAME BKV15AGS kit?

The motor, a control board with a graphic display, one TOP-432EE remote, an AF43S radio card with an antenna, a DIR20 photocell pair, a push button and four nylon racks. There is no blinker light.

Does the CAME BKV15AGS need a steel rack?

The kit includes four nylon racks. A gate near 1500 kg needs a steel rack, so we confirm the module and quote steel rack for heavy gates.

Will my Somfy or BFT remote work with the CAME BKV15AGS?

No. It uses a CAME radio card on 433.92 MHz, so Somfy, BFT and Nice handsets cannot pair with it. You need CAME handsets.

What is the CAME BKV15AGS price in Oman?

OMR 528.000, in stock at our Muscat shop. Installation is quoted separately once we have seen the gate.

Do you fit a CAME heavy sliding gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
