CAME SUPER FROG Underground Swing Gate Motor Oman, Three Phase for 8 m Leaves

Description

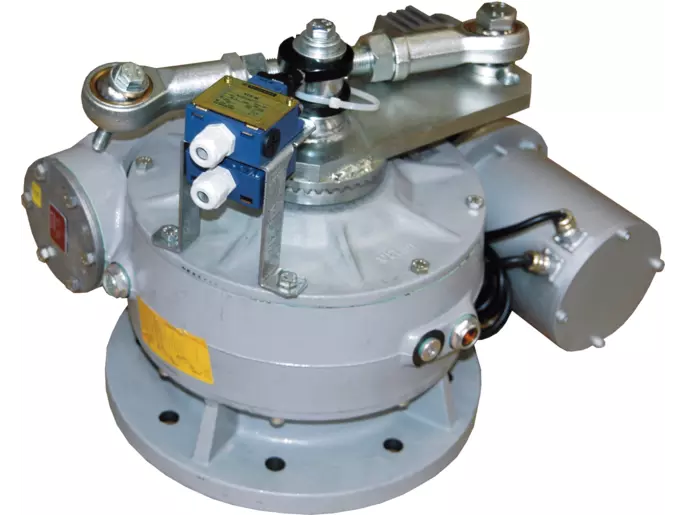

The CAME SUPER FROG is a pair of irreversible underground swing gate motors for very long leaves, up to 8 metres and 600 kg. The right hand motor is the 001FROG-MD and the left hand motor is the 001FROG-MS. Each is buried in a foundation box at the base of a pillar, so no arm or motor shows above ground. CAME lists an IP67 rating and a 50% duty.

Three points come first. The SUPER FROG runs on three phase power, which most houses do not have, so we check your supply before you buy. It is slow, at 45 seconds to open, because the leaves are big. And the work needs digging and drainage, so our engineers do it.

CAME SUPER FROG price in Oman and what a double gate needs

Price: on request. Send us your gate details, and we quote the full set in Omani rials, with installation.

The price depends on the size of the leaves and on the parts your gate needs. An underground double gate needs the parts in the table, so we quote each item for your gate before you pay.

CAME’s page does not list a kit, so we confirm what your supplier ships before you pay.

Three phase swing gate motor: what your site needs

CAME lists the SUPER FROG as a 230/400V three phase gearmotor, at 50 or 60 Hz. A three phase supply has three live conductors. Most houses have one, and many farms, factories and large estates have three. The motor will not run from a single phase supply.

CAME lists the control panel for this motor, the 002ZM3ES, as a 400V panel. We confirm that your supply and your panel match.

8 m leaves and 600 kg: is the CAME SUPER FROG right for your gate

CAME rates the motors for leaves up to 8 metres and 600 kg. Its limits table appears to allow a heavier leaf if it is shorter, with about 700 kg at 7 m, 800 kg at 6 m, 1000 kg at 5 m and 1200 kg at 4 m. The family page says up to 1500 kg, which applies only to leaves shorter than 4 m. The table has no labels, so we confirm the figure for your leaf before we quote.

We ask for the weight and the length of each leaf, and we allow for wind. An 8 m leaf catches a great deal of wind, so we check the hinges, the pillars and the foundation as well.

Foundation box and drainage for the CAME SUPER FROG

The foundation box is a buried casing that holds the motor and takes the load of the leaf. CAME names the 001FROG-CD for the right hand motor, in cataphoresis treated steel, with a left hand counterpart for the other leaf. The box must be set level in the ground before the motor goes in, with a drainage path and a cable duct.

A big leaf puts a big load on the box, so the concrete must be sound. We survey the ground before we quote. A coastal site or a driveway that floods needs extra preparation, so tell us if yours does.

600 W, 45 seconds and 50% duty on the SUPER FROG

CAME lists 600 W and up to 2.5 A on a three phase supply. The opening time to 90 degrees is 45 seconds, and the duty is 50%, so each motor can run about half the time. A slow, gentle swing is kind to an 8 m leaf and its hinges, and it suits a long entrance. It does not suit a gate that must clear quickly for a queue of cars.

Mechanical limit switches, irreversible gearmotor and CONNECT

CAME fits adjustable mechanical limit switches to the motor, which set the end positions of the leaf. The gearmotor is irreversible, so the leaf stays shut when the motor stops. CAME also lists CONNECT remote control through a gateway or the CAME KEY, a CXN BUS two wire connection, and a snap in card slot for the RIO System 2.0.

CAME tests the automation against European impact force standards. A very long leaf catches the wind, so an electric lock is worth having, and we quote one where it is needed.

CAME SUPER FROG, FROG PLUS and FROG: choosing an underground motor

We list several underground CAME motors. The table shows only what CAME publishes.

The SUPER FROG takes by far the longest leaves, and it needs three phase. For a villa on single phase, the FROG PLUS or the FROG are the choices. Ask us to compare them for your gate. See the CAME FROG PLUS and the CAME FROG.

IP67, flood water and sand: the CAME SUPER FROG in Oman

IP67 means the motor is sealed against dust and can survive temporary immersion, which matters for a buried motor in Oman, where heavy rain can flood a driveway in minutes. The motor works from minus 20 to plus 55°C. IP67 does not remove the need for drainage, so we build a drainage path at each pit, and show you how to clear it once a year.

Power cuts and the CAME SUPER FROG

This is a mains motor on three phase, with no battery backup listed. A power cut leaves the leaf where it stopped, held by the irreversible gearmotor, and we release it with the manual release. We keep the key where you can reach it and show everyone in the house how it works. If a backup matters to you, ask us, and we point you to a 24V swing motor for smaller gates.

What CAME does not state, and what we confirm

CAME SUPER FROG specification

CAME SUPER FROG underground gate motor in Muscat and across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service CAME swing gate motors across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. See all CAME swing gate motors, send photos of your pillars, your driveway and your electrical supply through the contact page, or visit the Doors Auto shop.

CAME SUPER FROG FAQ

What is the CAME SUPER FROG?

A pair of irreversible underground swing gate motors, the right hand 001FROG-MD and the left hand 001FROG-MS, for leaves up to 8 m and 600 kg, buried in foundation boxes so no motor shows above ground.

Does the CAME SUPER FROG need a three phase supply?

Yes. It runs on 230/400V three phase, so your site needs a three phase supply. It will not run on single phase, so we check your supply before you buy.

How long a gate leaf can the CAME SUPER FROG move?

CAME rates it for leaves up to 8 m and 600 kg, and shorter leaves appear to carry more, up to 1500 kg under 4 m. We confirm the limit for your leaf before we quote.

Is the CAME SUPER FROG slow?

It opens to 90 degrees in 45 seconds, which is gentle on a big leaf and suits a long entrance, but not a gate that must clear quickly.

What is the CAME SUPER FROG price in Oman?

The price depends on the size of your leaves and the parts your gate needs. Send us your gate details and your electrical supply, and we quote it in Omani rials, with installation.

Do you fit a CAME underground gate motor in Muscat and across Oman?

Yes. Our engineers fit and programme CAME swing gate motors in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
