CAME CGZ6 Steel Gate Rack Oman, Module 6 Galvanised 30 x 30 mm, 1 m

Description

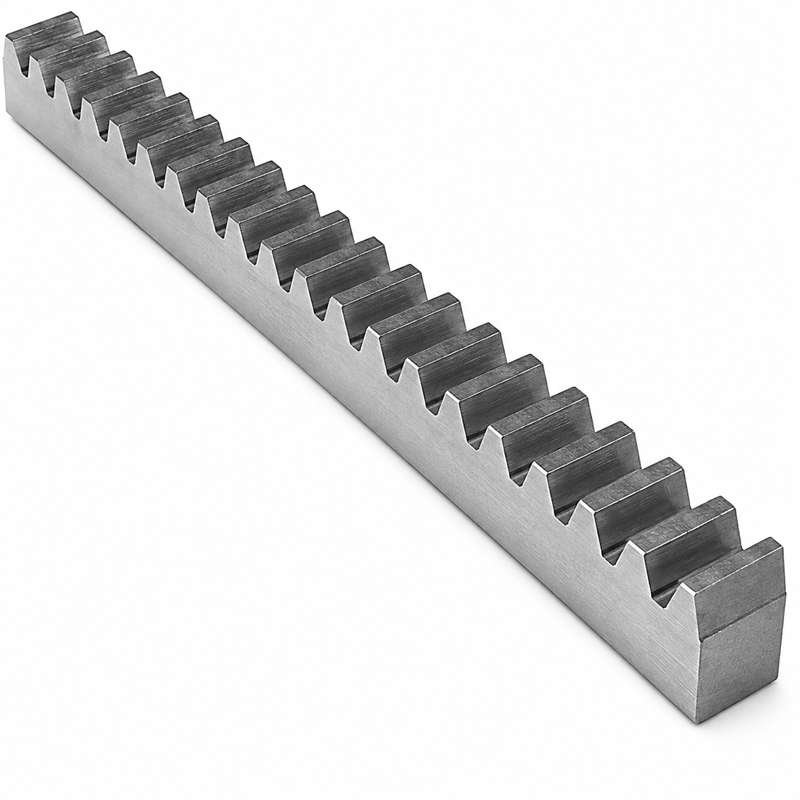

The CAME CGZ6 (code 009CGZ6) is a module 6 rack for sliding gates, made of galvanised laminated steel with a solid 30 x 30 mm section. It is sold in 1 m pieces and is welded to the gate. It is the rack for the heaviest sliding gates, on motors with a module 6 pinion such as the CAME BY-3500T.

Module 6 teeth are larger than the module 4 teeth on most gate motors. The CGZ6 fits only a module 6 pinion, so check your motor before you order.

Module 6 gate rack: what the module means

The module is the size of the teeth. The distance from one tooth to the next is the module multiplied by pi, so the two sizes are easy to tell apart with a tape measure:

A rack and a pinion of different modules will not mesh at all. Measure across ten teeth on your old rack: about 126 mm means module 4, about 188 mm means module 6.

CAME CGZ6 price in Oman: how many metres you need

Price: OMR 20.000 per 1 m piece, in stock at our shop in Al Khuwair, Muscat.

Order one metre more than your gate opening, rounded up to the next whole metre, so the rack stays on the pinion at both ends.

CAME BY-3500T rack: which motors the CGZ6 fits

See our CAME sliding gate motors to match a motor to your gate.

Industrial sliding gate rack: where the CGZ6 is used

Gates heavy enough for a module 6 rack are found at factories, warehouses, ports, logistics yards and large compounds: long steel gates, often over 10 m, that trucks pass through all day. On these gates, a solid 30 x 30 mm rack keeps its shape under the load and the constant cycles, where a smaller rack would wear its teeth.

Galvanised rack 30 x 30: how we weld and fit it

• We fix the motor base level and in line with the gate, on a concrete base sized for the motor.
• We tack the first piece with the gate closed, resting on the pinion.
• We join each new piece so the teeth keep the same spacing across the joint, using a short offcut to line them up.
• We set a small gap between the rack and the pinion along the whole length, so the gate weight never rests on the motor.
• We run the gate from end to end, then finish the welds.
• We clean every weld and cut end and paint it with zinc rich paint.

On a gate this heavy, a rack that sits low or a badly spaced joint loads the motor gearbox on every cycle. Getting the rack right at the start protects a costly motor.

Salt, sand and heavy use in Oman

CAME CGZ6 specification

Supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They supply, fit and service sliding gate motors and racks across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send us the gate opening, the motor label and a photo of the pinion, and we confirm the rack and the metres. See also the full range of CAME accessories.

CAME CGZ6 FAQ

What is the CAME CGZ6?

A module 6 galvanised steel rack for sliding gates, with a solid 30 x 30 mm section, sold in 1 m pieces for welding.

Which motor does the CAME CGZ6 fit?

Motors with a module 6 pinion, such as the CAME BY-3500T. It does not fit module 4 motors such as the CAME BX.

How do I tell module 4 from module 6?

Measure across ten teeth on the old rack. About 126 mm is module 4, and about 188 mm is module 6.

How many metres of rack do I need?

Order one metre more than your gate opening and round up. A 10 m opening needs 11 pieces.

What is the CAME CGZ6 price in Oman?

OMR 20.000 per 1 m piece, in stock at our Muscat shop. Fitting and welding are quoted with your gate job.
