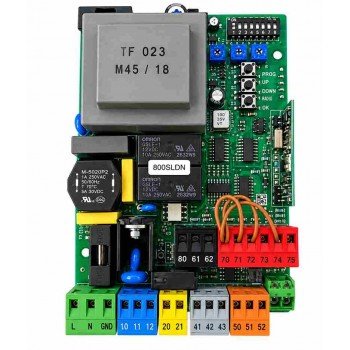

BFT SHYRA F 800SLDN Control Board Oman, DEIMOS AC A800

Description

The BFT SHYRA F 800SLDN is the control board for BFT DEIMOS AC A800 sliding gate motors, up to 500W on 230V single phase, with a built in dual channel receiver and two verified safety inputs, including a dedicated 8K2 resistive safety edge.

This is now the third board carrying the SHYRA name on this site, and each one fits a different operator entirely. Confuse them and the replacement board simply will not run the gate it was bought for.

Three BFT SHYRA boards, three different gates

Read the full board name off the unit you are replacing, not just the word SHYRA, since all three sit in the same family of BFT’s part naming and nothing in the shortened name tells you which gate type it serves.

BFT DEIMOS A800 control board: why this one carries a second safety input

A800 is the heaviest standard DEIMOS AC rating on this site, 800 kg, and a heavier gate failing an obstacle check is a bigger hazard than a light one. The second verified safety input on this board, alongside the 8K2 edge, reflects that. We wire and test both under load, the gate actually moving and both inputs triggered by hand, rather than assume the wiring diagram alone covers it.

BFT SHYRA F 800SLDN specification

Why the DEIMOS gearbox outlasts the board

A gate that hums without moving, runs one direction only, or has stopped learning remotes is very often this board, not a worn gearbox, even at 800 kg. Send us a photo of the existing board and its printed code, and confirm the exact model, A800 specifically, before ordering a replacement, since the lighter SHYRA AC looks similar but is not interchangeable.

Two verified safety inputs, what they actually check

One input is the 8K2 resistive safety edge along the gate’s leading edge, detecting actual contact as the gate travels. The second verified input typically covers a photocell pair or a secondary edge, depending on how the site is configured. We confirm which second device your installation actually needs and wire it accordingly, rather than leave one input unused on a gate heavy enough to need both.

Fitting an 800kg sliding gate control board in Oman

At this weight, the board, the motor and the gate itself are all working harder than a standard villa installation, and that is reflected in heavier current draw and a circuit that needs dedicated sizing. Coastal sites in Sohar, Sur and Salalah need the enclosure seal checked against salt air over time, and inland at Nizwa and Duqm, dust through a poorly sealed cable gland is the more common fault cause on a heavily used gate like this.

What is included, and what is not

• BFT SHYRA F 800SLDN control board

Not included: enclosure, photocells, safety edge sensor strip, remotes and mains cabling. Remotes from BFT remotes, rack from the BFT steel rack page given the weight this gate carries, and photocells from DESME A15.

BFT control board supply and fitting across Oman

We stock all three SHYRA boards alongside the full HAMAL, THALIA, ALENA SW2 and LEO B CBB range, and we confirm the exact model before quoting a replacement. We cover all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send a photo of your existing board and the motor’s rating plate through the contact page.

BFT SHYRA F 800SLDN FAQ

Is this the same board as the SHYRA AC?

No. This board fits DEIMOS AC A800 specifically and carries two verified safety inputs. The plain SHYRA AC fits general DEIMOS AC models with one confirmed input.

What is the difference between this and the barrier SHYRA board?

SHYRA AC BA 230V fits MOOVI parking barriers, a completely different gate type from this sliding gate board.

My DEIMOS A800 gate will not move. Do I need a new motor?

Usually not. A gate that hums, runs one direction only, or has stopped learning remotes is very often the board. Send us a photo and the code on it.

What is the BFT SHYRA F 800SLDN price in Oman?

OMR 91.000. In stock, with fitting and safety testing quoted separately.

Do you fit BFT heavy duty sliding gate control boards across Oman?

Yes, in all eleven governorates, with our engineers based in Al Khuwair, Muscat.
