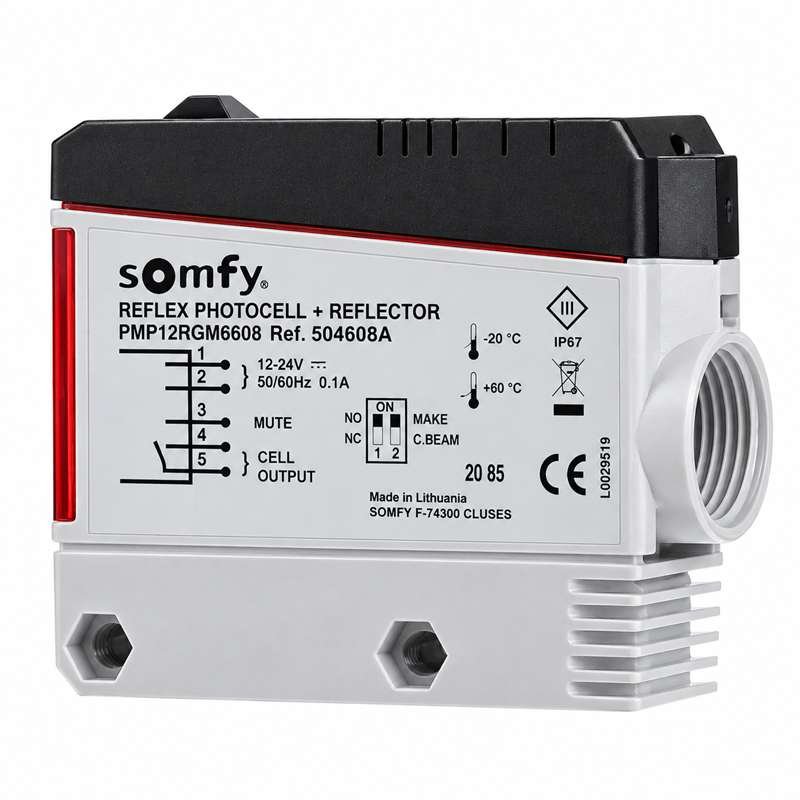

Somfy Reflex PMP12 Reflective Photocell Oman, 12 m IP67 Safety Sensor

Description

The Somfy Reflex PMP12 is a reflective photocell safety sensor for Somfy sliding gates, swing gates, garage doors and automatic barriers. It has a listed detection range of 12 metres in open areas, runs on 24 V AC or DC and carries an IP67 rating. It works from one unit on one side of the opening, with a reflector on the other.

Two points come first. A reflective photocell is useless without its reflector, so we confirm that one comes with it. And we confirm that your control board accepts the contact type and the 24 V supply before you buy.

Somfy Reflex PMP12 price in Oman and what you are buying

Price: OMR 76.000, in stock at our Muscat shop. Fitting is quoted separately once we have seen the gate.

The listing does not state the box contents. It does not say whether the reflector, the bracket or the cable come with the sensor. Ask us when you order, and we show you exactly what is in the pack before you pay.

Reflective photocell or a transmitter and receiver pair

A pair of photocells puts a transmitter on one post and a receiver on the other. A reflective photocell puts a single unit on one side and a reflector, a small mirror like plate, on the other. The unit sends a beam out and reads it coming back.

The Reflex suits an opening where running cable across to the other side is awkward, or where the conditions are harsh. For a standard villa gate, our Somfy Master Pro Bitech photocell is cheaper and usually enough.

Which Somfy gates and garage doors use this reflective photocell

Somfy lists the Reflex PMP12 for six types of system. It names no specific motor model, so we check yours.

See the Somfy swing gate motors, the Somfy sliding gate motors and the Somfy garage door motors.

Somfy 12 m photocell: what the detection range means

Somfy lists a detection range of 12 metres in open areas. That is the distance the beam can travel between the sensor and the reflector in clear conditions. Dust, heavy rain or strong sun reduce it, so we aim to keep the reflector well inside the limit.

For most driveways, 12 metres is generous. It suits a wide gate, a car park entrance or a barrier lane. We measure the opening and tell you if the sensor reaches comfortably.

IP67 and minus 25 to plus 60°C: a photocell for harsh Omani sites

IP67 means the sensor is sealed against dust and can survive temporary immersion. That matters at a coastal site, near a gate that is hosed down, or where sand is constant. The listed temperature range runs from minus 25 to plus 60°C, which covers the heat of an Omani summer in direct sun.

Even so, strong low sun can dazzle a photocell at certain times of day. We choose the mounting side so the sensor does not face the setting sun, and we show you how to wipe the lens and the reflector clear of sand.

24 V supply, contact type and the signal test output

The sensor runs on 24 V AC or DC, rated for a 3 A load, with protection class II, which means double insulation. Most Somfy control boards supply 24 V to accessories, but we check yours.

The listing’s “NF” and “NO or NC” wording is unclear, so we confirm the output on the unit itself. A wrong connection leaves the safety input open while the gate still moves.

Somfy reflective photocell installation in Muscat

The photocell links to the safety input on the control board, which sits beside mains parts. Our engineers fit the sensor and the reflector, align the beam, wire the contact correctly and test that the gate stops and reverses when the beam is broken. The sensor measures 68 x 25 x 81 mm, which is compact enough for a slim pillar.

Somfy Reflex PMP12 specification

Somfy gate safety sensor in Muscat and across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They fit, programme and service Somfy motors and accessories across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send the width of your opening and a photo of the control board through the contact page, or visit the Doors Auto shop.

Somfy Reflex PMP12 FAQ

What is the Somfy Reflex PMP12?

A reflective photocell safety sensor for Somfy gates, garage doors and automatic barriers. It has a listed range of 12 metres in open areas and an IP67 rating.

Does the Somfy Reflex PMP12 come with a reflector?

The listing does not say. A reflective photocell needs a reflector to work, so we confirm what is in the pack before you pay.

What is the difference between the Somfy Reflex and the Master Pro Bitech?

The Reflex is a reflective sensor that works from one side with a reflector. The Master Pro Bitech is a transmitter and receiver pair. The Reflex has a longer range and a higher IP rating, and costs more.

What is the Somfy Reflex PMP12 price in Oman?

OMR 76.000, in stock at our Muscat shop. Fitting is quoted separately once we have seen the gate.

Will the Somfy Reflex PMP12 work with my gate?

It depends on your control board. It needs a 24 V supply and a safety input that suits its contact type. Send us your motor model or a photo of the board and we confirm.

Do you fit a Somfy reflective photocell in Muscat and across Oman?

Yes. Our engineers fit Somfy photocells in Muscat, Sohar, Nizwa, Sur, Salalah, Duqm and across all eleven governorates.
