CAME CGZS Steel Gate Rack Oman, Module 4 Galvanised 30 x 8 mm, Bolt On

Description

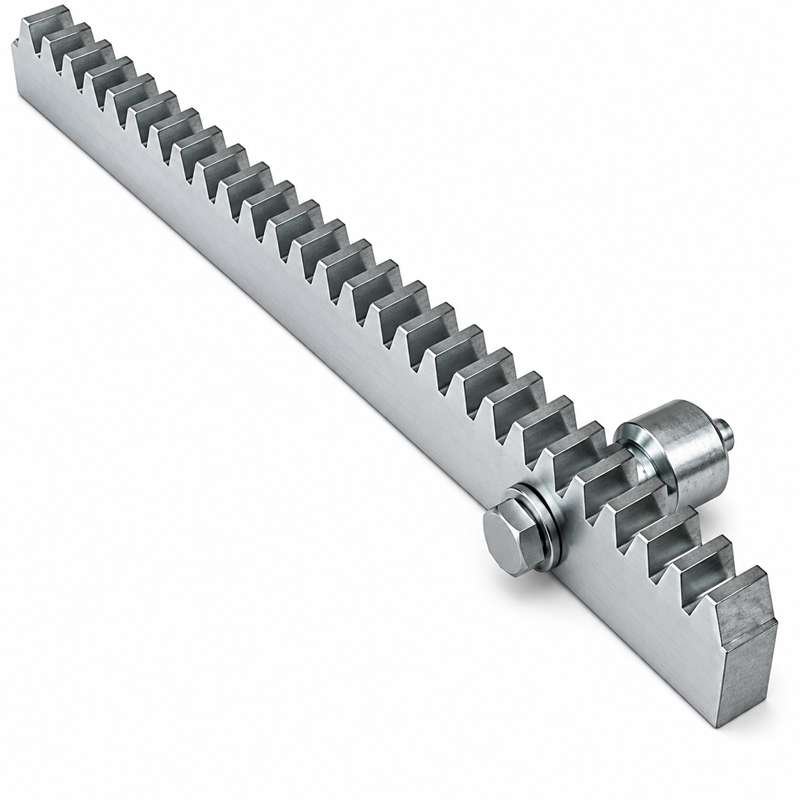

The CAME CGZS (code 009CGZS) is a module 4 rack for sliding gates, made of galvanised steel with a flat 30 x 8 mm section and sold in 1 m pieces. Each piece has fixing holes and comes with spacers and screws, so it bolts to the gate with no welding at all.

That makes it the steel rack to choose when the gate must not be welded: a powder coated gate, a galvanised gate, an aluminium gate, or a site where hot work is not allowed.

Bolt on gate rack: why fixing without welding matters

Welding a rack to a finished gate burns through the paint or the galvanising along every weld. On the coast, that is where rust starts. A bolted rack leaves the gate finish intact.

CAME CGZS price in Oman: how many metres you need

Price: OMR 9.000 per 1 m piece, with spacers and screws, in stock at our shop in Al Khuwair, Muscat.

Order one metre more than your gate opening, rounded up to the next whole metre, so the rack stays on the pinion at both ends.

Which gate rack to choose: the four CAME racks compared

The CGZS fits motors with a module 4 pinion, such as the CAME BX range and module 4 BK motors. For very heavy gates, we suggest the solid CGZ. See our CAME sliding gate motors.

Gate rack without welding: how we fit the CGZS

• We fix the motor base level and in line with the gate.
• We hold the first piece on the pinion with the gate closed and mark the holes.
• We drill the gate and fix the rack with the screws, using the spacers to hold it off the gate at the right height.
• We join each new piece so the teeth keep the same spacing across the joint, using a short offcut to line them up.
• We set a small gap between the rack and the pinion along the whole length, so the gate weight never rests on the motor.
• We seal every drilled hole in the gate against rust.

Because the rack is bolted, we can adjust its height later if the gate drops on worn wheels, without cutting or welding.

Galvanised rack 30 x 8: salt, sand and heat in Oman

CAME CGZS specification

Supply and fitting across Oman

We are a physical shop in Al Khuwair, Muscat with our own engineers. They supply, fit and service sliding gate motors and racks across all eleven governorates: Muscat, Al Batinah North, Al Batinah South, Ad Dakhiliyah, Ash Sharqiyah North, Ash Sharqiyah South, Adh Dhahirah, Al Buraimi, Al Wusta, Dhofar and Musandam. That reaches Sohar in Al Batinah North, Nizwa in Ad Dakhiliyah, Sur in Ash Sharqiyah South, Salalah in Dhofar and Duqm in Al Wusta.

Visit us at Shop No 176, Way Street No 57, Block No 17/2, Al Khuwair, Muscat, Oman. Call or WhatsApp +968 78109286, or email contact@doorsauto.com. Send us the gate opening, the gate material and a photo of the motor, and we tell you which rack and how many metres. See also the full range of CAME accessories.

CAME CGZS FAQ

What is the CAME CGZS?

A module 4 galvanised steel rack for sliding gates, 30 x 8 mm and 1 m long, with fixing holes, spacers and screws so it bolts on without welding.

Why choose a bolt on rack?

It leaves the paint or galvanising on the gate intact, it works on aluminium gates, and its height can be adjusted later.

Which CAME rack should I choose?

The nylon CGZP for light gates, the CGZS for gates that must not be welded, the solid CGZ for heavy gates, and the CGZ6 for module 6 motors.

How many metres of rack do I need?

Order one metre more than your gate opening and round up. A 5 m opening needs 6 pieces.

What is the CAME CGZS price in Oman?

OMR 9.000 per 1 m piece, with spacers and screws, in stock at our Muscat shop. Fitting is quoted with your gate job.
